SMD 600 Plus

Very High Performance Enhanced Metal Detector

Scroll ↓

The SMD®600 Plus is a very high sensitivity Metal Detector that also offers characteristics of high discrimination and high detection uniformity.

This advanced walk-through metal detector is designed for high-security environments such as airports, government buildings, correctional facilities, and other sensitive locations requiring reliable threat detection.

Key Features:

Very high sensitivity with excellent discrimination capabilities
High detection uniformity across the entire detection zone
Fast reset time of just 0.2 seconds for high throughput
Multi-zone detection with precise target location
Robust construction with weather-resistant panels
Advanced self-diagnostic system for reliable operation
Comprehensive alarm signaling with visual and audio indicators
Easy installation with automatic synchronization capability

The SMD 600 Plus features a state-of-the-art digital design that eliminates the need for periodic recalibration, ensuring consistent performance over time. Its advanced signal processing algorithms provide exceptional discrimination between different types of metals, reducing false alarms while maintaining high detection sensitivity.

With its wide detection area and fast processing capabilities, the SMD 600 Plus can handle high pedestrian traffic while maintaining security effectiveness. The system's intuitive interface allows for easy operation and configuration to meet specific security requirements.

Applications:

Airport security checkpoints
Government and embassy buildings
Correctional facilities and prisons
Courthouses and judicial buildings
Corporate headquarters and high-security facilities
Event venues and public gatherings

The SMD 600 Plus is fully compliant with international security standards including NIJ-0601.02, ensuring it meets the rigorous requirements of law enforcement and security agencies worldwide.

Technical Support:

Comprehensive technical support and training are available for all SMD 600 Plus installations. Our team of experts ensures proper setup, calibration, and ongoing maintenance to guarantee optimal performance throughout the product lifecycle.

Useful Transit Area (W × H)	720 mm × 2050 mm (standard); 820 mm × 2050 mm (wider passage)

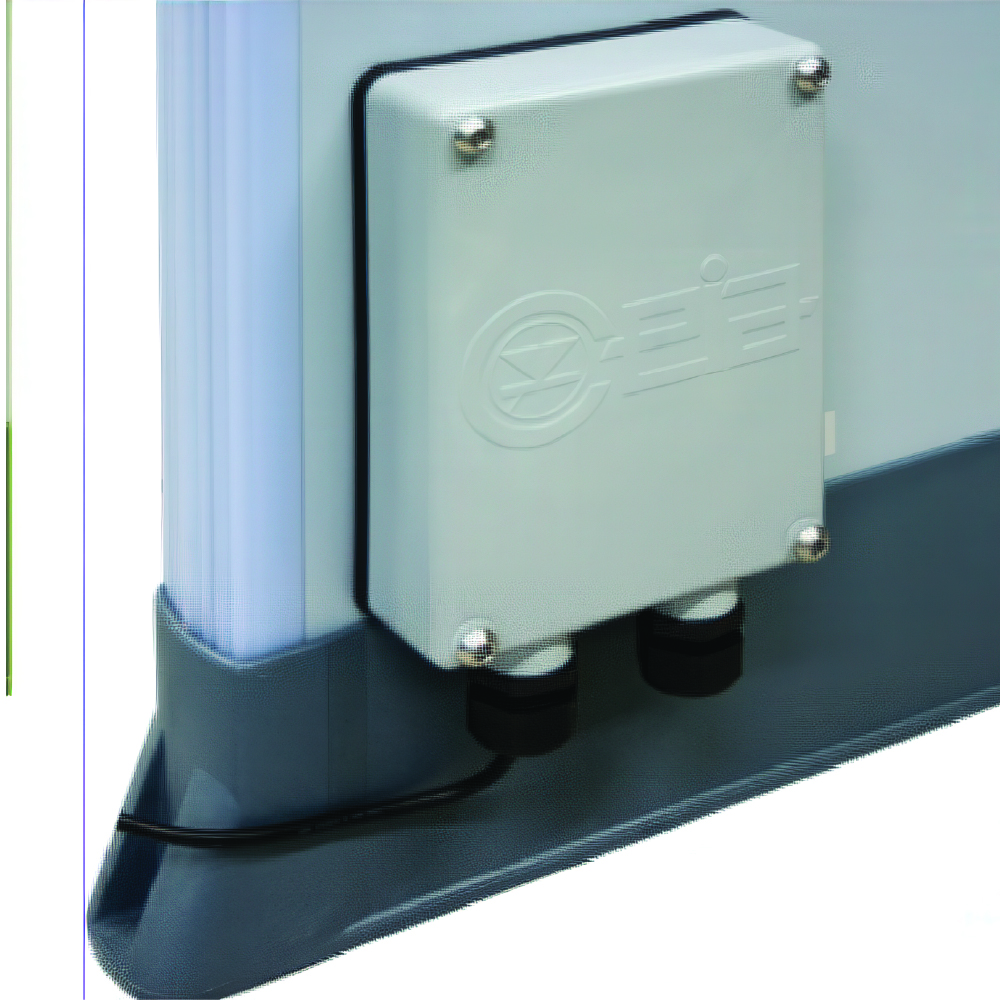

Control Unit	Antivandalic and antitampering IP66
Transit Counters	Embedded high precision, 2-beam photocells
Switch	Antitampering ON/OFF switch
Panels	State-of-the-art, robust and washable; protected against aging, weather, and wear
Discrimination & Flow	High discrimination; transit flow rates 5× greater than other systems
Reset Time	As short as 0.2 seconds
Detection Speed	Up to 15 m/sec.
Built-in Verification	Operational Functional Verification (OFV)
Data Reading	One-touch key for inbound, outbound, Security Level data
Diagnostics	Continuous self-diagnostic system
Reliability	Proven; no periodic re-calibration required; fully digital design
Visual Signals	Multi-zone display bar, dual side 20x2 zones, shoe alarm color indication, 4 light bars with selectable entry/exit and pacing indication, green/red signals proportional to target mass
Audio Signals	10 selectable continuous/pulsed tones + 34 special tones; intensity 0–90 dBA at 1 m; random alarm capability; Met-Identity technology
Signalling	Fixed or proportional to mass; visible from 6 m under 4000 lux; 20×4 distinct zones
Programs	Up to 50 built-in Security Programs; remote via IR, BT, or Ethernet (option); local control via display & keyboard
Automatic Functions	Channel Search (CS), Floor Gain Adjustment (FGA), Technical Functional Verification (TFV), Vibration Compensation (AVS, EVA), Environmental Noise Compensation (ENA)
Power Supply	Safe low voltage DC via external adapter; 100–277V ±10%, 47–63Hz, 40 VA typical
Operating Temp	-20°C to +65°C (-37°C to +70°C upon request)
Storage Temp	-37°C to +70°C
Humidity	0–95% (without condensation)
Synchronization	Automatic between two or more detectors; down to 5 cm apart; no external cables
Installation	One Touch Automatic Self Installation (OTS)
Certification	Fully compliant with NIJ-0601.02, standards for Law Enforcement, Correctional Facilities, Airports, electrical safety, EMC, Human Exposure, pacemaker safety; harmless to magnetic media
