AUTODOME IP 5000i
Starlight camera with 30x optical zoom for surveillance in varying light conditions
Scroll ↓
Specially designed and tuned for applications requiring surveillance in scenes with varying light levels, the AUTODOME IP starlight 5000i camera has an integrated 30X optical zoom to identify people at a maximum distance of 183 m (600 ft) with minimal loss of detail.
- Starlight camera technology provides excellent low-light performance.
- 120dB dynamic range allows you to capture details in overexposed situations with confidence.
- Intelligent streaming, IDNR, and H.265 reduce bit rate by up to 80%.
- Built-in Essential Video Analytics triggers relevant alerts and enables quick data retrieval.
- High-resolution bubble ensures maximum effective resolution output.
| Imager | 1/2.8” progressive scan CMOS |
| Effective Picture Elements | 1945 x 1097 (2.13 MP) |
| Lens | 30x zoom, 4.5 mm - 135 mm (F1.6 - F4.4) |
| Optical Zoom Field of View (FOV) | 2.4° - 60.9° |
| Focus | Automatic with manual override |
| Iris | Automatic with iris priority feature |
| Digital Zoom | 16x |
| Video Sensitivity | Color: 0.0186 lux, Mono: 0.004 lux (3100K, reflectivity 89%, 1/30, F1.6, 30 IRE) |
| Additional Camera Settings |
Gain control: AGC, 6 dB to 71 dB Electronic Shutter Speed (AES): 0.64 sec to 1/66666 sec Signal-to-Noise Ratio (SNR): >55 dB Day/Night switch: Automatic IR cut filter Backlight Compensation (BLC): On / Off / IAE White balance: Basic auto, Standard auto, Sodium lamp auto, Dominant color auto, Manual Day/Night mode: Monochrome, Color, Auto Defog mode: Improves visibility in fog/low contrast scenes |
| Dynamic Range | High dynamic range 120 dB WDR (Measured: 107 dB WDR IEC 62676 Part 5) |
| Video Content Analysis |
Analysis type: Essential Video Analytics Configurations: Silent VCA/Profile1-16 Alarm rules: Any object, Object in field, Crossing line, Entering field, Leaving field, Loitering, Following route, Idle object, Removed object, Counter, Occupancy, Crowd detection, Condition change, Similarity search, Tampering Object filters: Duration, Size, Aspect ratio v/h, Speed, Direction, Color Object classes: Upright persons, Bikes, Cars, Trucks Calibration: Automatic self-calibrating |
| Mechanical |
Pan/Tilt Modes: Normal 0.1°/s - 120°/s, Turbo: Pan 0.1°/s - 300°/s, Tilt 0.1°/s - 200°/s Pre-position Speed: Pan 300°/s, Tilt 200°/s Pan Range: 360° continuous Tilt Angle: -90° to 0° (Auto-flip 180°) Pre-position Accuracy: ± 0.1° typ. Pre-positions: 256 Tours: Recorded tours (2, max 15 min), Pre-position tour (1, up to 256 scenes, 1 customized up to 64 scenes) |
| Electrical | Input voltage: 24 VAC and PoE+ Power consumption: 14 W (heater off) / 24 W (heater on) |
| Network |
Video compression: H.265 / H.264 / M-JPEG Streaming: 4 streams (2 configurable H.264/H.265, 1 I-frame only, 1 M-JPEG) Frame rate: 60fps IP delay: 200 ms Resolution: 1080p Full HD (1920x1080), 720p HD (1280x720), 1.3MP (1280x1024), D1 704x576, 640x480, 432p 768x432, 288p 512x288 Bitrate H.265 IPS: 1080p/720p - 60fps: 1649/1249, 30fps: 1413/1096, 15fps: 1157/902, 10fps: 1075/841, 5fps: 746/597, 2fps: 407/343 Ethernet: 10/100BASE-T Encryption: TLS 1.0, SSL, DES, 3DES, AES Protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNMP V1/V3, 802.1x, DNS, DDNS, SMTP, iSCSI, UPnP, DiffServ, LLDP, SOAP, Dropbox™, CHAP, digest auth Interoperability: ONVIF Profile S, G, T, GB/T 28181 |
| Local Storage | Memory card slot: microSDHC up to 32 GB / microSDXC up to 2 TB (Class 6+ recommended) |
| Miscellaneous |
Sector/Titling: 16 sectors with 20 characters each Privacy Masks: 32 configurable masks (Black, White, Gray, Auto) Supported Languages: English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese (simplified) |
| Audio |
Compression: G.711 (8kHz), L16 (16kHz), AAC (16kHz) Interface: 1/1 Channel In/Out Signal line in: 94 kΩ typical, 1 Vrms max Signal line out: 1 kΩ typical, 1 Vrms max |
| User Connections / Power / Alarm |
RJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4) 21-30 VAC, 50/60 Hz Alarm Inputs: 2 Alarm Outputs: 1 relay 5 VDC, 150 mA max Audio: 1x mono line in, 1x mono line out |
| Communications / Software Control | Serial protocols: Bosch OSRD, Pelco P/D, Forward Vision, Cohu (license MVS-FCOM-PRCL required) |
| Environmental (Pendant Model) | IP66, IK10; Operating temp: -40°C to +60°C; Humidity: 0%-100% RH, condensing; Storage temp: -40°C to +60°C |
| Environmental (In-Ceiling Model) | IP51; Operating temp: -10°C to +60°C; Humidity: Up to 90% RH, non-condensing; Storage temp: -40°C to +60°C |

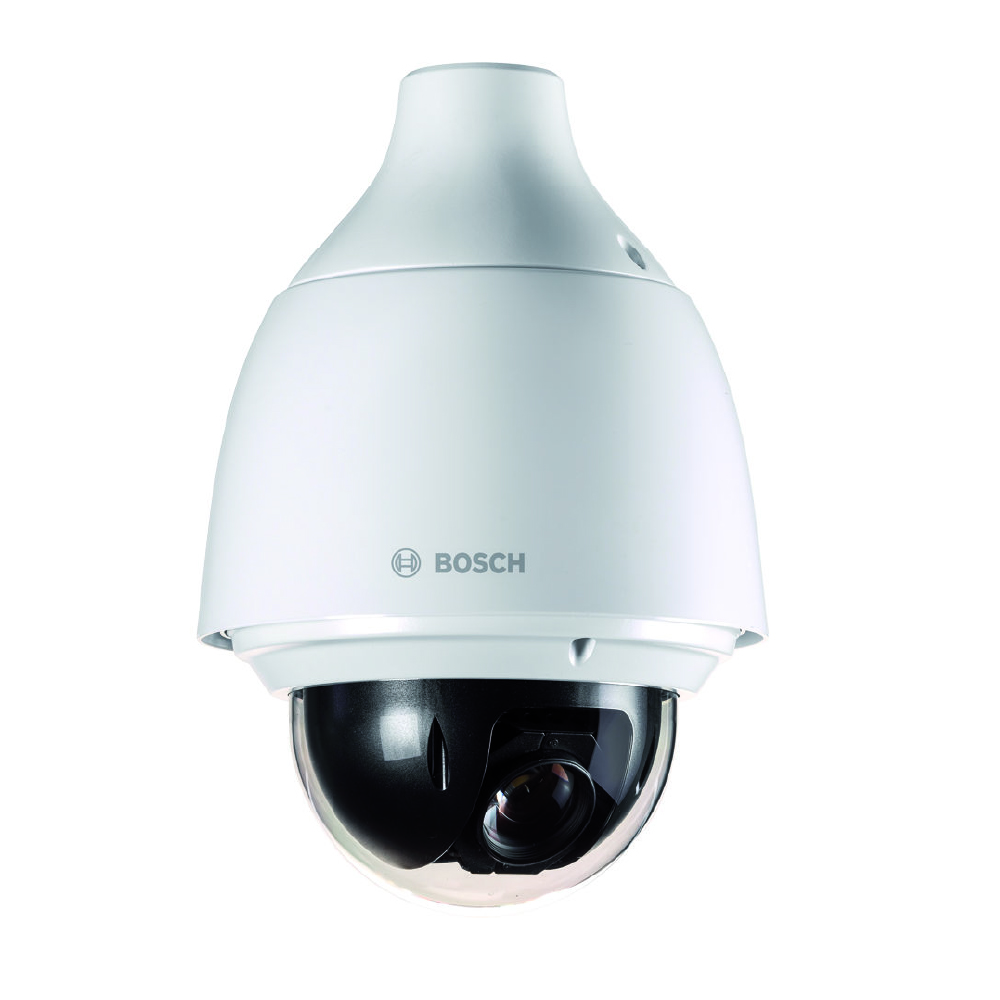

| Construction (Pendant Model) |
Dimensions (D x H): 207 mm x 303.6 mm Weight: 3.25 kg Housing Material: Aluminum Sunshield: Outdoor Grade Plastic Bubble: Polycarbonate (anti-reflective, anti-static, anti-scratch, hydrophobic, UV protective) Standard Color: White (RAL 9003) |

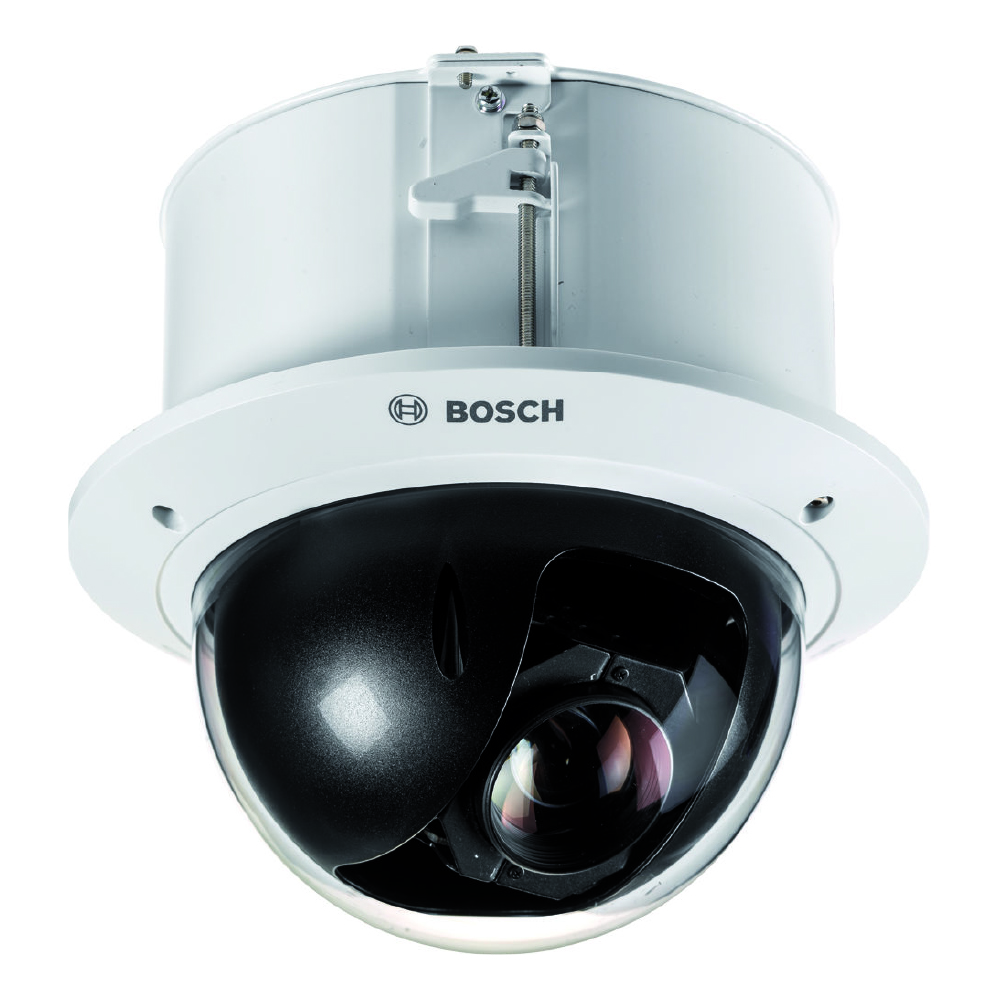

| Construction (In-Ceiling Model) |
Dimensions (DIA x H): 198 mm x 176.6 mm Weight: 2.1 kg Housing Material: SPCC Trim ring: PC/ABS Bubble: Polycarbonate Standard Color: White (RAL 9003) |
- Imager1/2.8” progressive scan CMOS
- Effective Picture Elements1945 x 1097 (2.13 MP)
- Lens30x zoom, 4.5 mm - 135 mm (F1.6 - F4.4)
- Optical Zoom Field of View (FOV)2.4° - 60.9°
- FocusAutomatic with manual override
- IrisAutomatic with iris priority feature
- Digital Zoom16x
- Video SensitivityColor: 0.0186 lux, Mono: 0.004 lux (3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
- Additional Camera SettingsGain control: AGC, 6 dB to 71 dB
Electronic Shutter Speed (AES): 0.64 sec to 1/66666 sec
Signal-to-Noise Ratio (SNR): >55 dB
Day/Night switch: Automatic IR cut filter
Backlight Compensation (BLC): On / Off / IAE
White balance: Basic auto, Standard auto, Sodium lamp auto, Dominant color auto, Manual
Day/Night mode: Monochrome, Color, Auto
Defog mode: Improves visibility in fog/low contrast scenes - Dynamic RangeHigh dynamic range 120 dB WDR (Measured: 107 dB WDR IEC 62676 Part 5)
- Video Content AnalysisAnalysis type: Essential Video Analytics
Configurations: Silent VCA/Profile1-16
Alarm rules: Any object, Object in field, Crossing line, Entering field, Leaving field, Loitering, Following route, Idle object, Removed object, Counter, Occupancy, Crowd detection, Condition change, Similarity search, Tampering
Object filters: Duration, Size, Aspect ratio v/h, Speed, Direction, Color
Object classes: Upright persons, Bikes, Cars, Trucks
Calibration: Automatic self-calibrating - MechanicalPan/Tilt Modes: Normal 0.1°/s - 120°/s, Turbo: Pan 0.1°/s - 300°/s, Tilt 0.1°/s - 200°/s
Pre-position Speed: Pan 300°/s, Tilt 200°/s
Pan Range: 360° continuous
Tilt Angle: -90° to 0° (Auto-flip 180°)
Pre-position Accuracy: ± 0.1° typ.
Pre-positions: 256
Tours: Recorded tours (2, max 15 min), Pre-position tour (1, up to 256 scenes, 1 customized up to 64 scenes) - ElectricalInput voltage: 24 VAC and PoE+
Power consumption: 14 W (heater off) / 24 W (heater on) - NetworkVideo compression: H.265 / H.264 / M-JPEG
Streaming: 4 streams (2 configurable H.264/H.265, 1 I-frame only, 1 M-JPEG)
Frame rate: 60fps
IP delay: 200 ms
Resolution: 1080p Full HD (1920x1080), 720p HD (1280x720), 1.3MP (1280x1024), D1 704x576, 640x480, 432p 768x432, 288p 512x288
Bitrate H.265 IPS: 1080p/720p - 60fps: 1649/1249, 30fps: 1413/1096, 15fps: 1157/902, 10fps: 1075/841, 5fps: 746/597, 2fps: 407/343
Ethernet: 10/100BASE-T
Encryption: TLS 1.0, SSL, DES, 3DES, AES
Protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNMP V1/V3, 802.1x, DNS, DDNS, SMTP, iSCSI, UPnP, DiffServ, LLDP, SOAP, Dropbox™, CHAP, digest auth
Interoperability: ONVIF Profile S, G, T, GB/T 28181 - Local StorageMemory card slot: microSDHC up to 32 GB / microSDXC up to 2 TB (Class 6+ recommended)
- MiscellaneousSector/Titling: 16 sectors with 20 characters each
Privacy Masks: 32 configurable masks (Black, White, Gray, Auto)
Supported Languages: English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese (simplified) - AudioCompression: G.711 (8kHz), L16 (16kHz), AAC (16kHz)
Interface: 1/1 Channel In/Out
Signal line in: 94 kΩ typical, 1 Vrms max
Signal line out: 1 kΩ typical, 1 Vrms max - User Connections / Power / AlarmRJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4)
21-30 VAC, 50/60 Hz
Alarm Inputs: 2
Alarm Outputs: 1 relay 5 VDC, 150 mA max
Audio: 1x mono line in, 1x mono line out - Communications / Software ControlSerial protocols: Bosch OSRD, Pelco P/D, Forward Vision, Cohu (license MVS-FCOM-PRCL required)
- Environmental (Pendant Model)IP66, IK10; Operating temp: -40°C to +60°C; Humidity: 0%-100% RH, condensing; Storage temp: -40°C to +60°C
- Environmental (In-Ceiling Model)IP51; Operating temp: -10°C to +60°C; Humidity: Up to 90% RH, non-condensing; Storage temp: -40°C to +60°C
- Construction (Pendant Model)Dimensions (D x H): 207 mm x 303.6 mm
Weight: 3.25 kg
Housing Material: Aluminum
Sunshield: Outdoor Grade Plastic
Bubble: Polycarbonate (anti-reflective, anti-static, anti-scratch, hydrophobic, UV protective)
Standard Color: White (RAL 9003) - Construction (In-Ceiling Model)Dimensions (DIA x H): 198 mm x 176.6 mm
Weight: 2.1 kg
Housing Material: SPCC
Trim ring: PC/ABS
Bubble: Polycarbonate
Standard Color: White (RAL 9003)
